UPS Battery Monitoring System for Reliable Power in Healthcare Facilities

Hospitals depend on continuous and reliable power to protect patients, operate critical medical equipment, and maintain essential services. Intensive care units, operating rooms, emergency departments, medical laboratories, communication systems, and hospital IT infrastructure all rely on stable electricity. When the main power supply fails, UPS systems and battery banks provide critical backup power and help keep essential loads running.

But backup batteries are only effective when they are in good condition and ready to operate. This makes continuous battery monitoring for hospitals an important part of reliable power infrastructure.

---

---

Why Hospital Backup Power Is So Important

For hospitals, power continuity is not simply a matter of convenience. A power interruption can affect life-support equipment, medical devices, lighting, communications, data systems, and other critical services. Backup power systems therefore need to respond immediately when the primary supply is interrupted.

Battery banks are a key component of many hospital UPS and emergency power systems. However, batteries can gradually deteriorate even when they remain on standby and appear to be operating normally. A weak battery can become the weakest link in an entire battery string, potentially reducing the performance of the backup system when it is needed most.

---

Challenges in Hospital Backup Battery Maintenance

Hospital battery maintenance presents several practical challenges.

First, battery degradation is often gradual. Aging, temperature variations, charging conditions, and other factors can cause battery performance to decline over time without an obvious external warning.

Second, periodic manual testing provides only a snapshot. Technicians may measure battery voltage or perform scheduled inspections, but these methods cannot continuously track changes between maintenance intervals.

Third, identifying a single weak battery can be difficult. A battery string may contain dozens or even hundreds of individual batteries. One abnormal battery may affect the reliability of the complete string, while its problem can remain hidden among otherwise normal batteries.

Finally, maintenance teams need better data for replacement decisions. Replacing batteries too early increases maintenance costs, while replacing them too late can increase operational risk. Reliable historical data can help teams make more informed decisions.

---

How DFUN BMS Solves These Challenges

The DFUN Battery Monitoring System (BMS) provides continuous monitoring of individual batteries and complete battery strings, giving hospital operators greater visibility into the condition of their backup power systems.

DFUN BMS monitors the following key parameters:

• Individual battery voltage — identifies voltage deviations and imbalance between batteries.
• Battery temperature (negative pole) — helps detect overheating and abnormal temperature conditions.
• Internal resistance — provides an important indicator of battery degradation and aging.
• String voltage and ripple voltage — helps evaluate overall string conditions and charging-related abnormalities.
• String current and ripple current — provides visibility into charging, discharging, and electrical operating conditions.
• State of Charge (SOC) — indicates the battery's available charge level.
• State of Health (SOH) — helps assess the overall health and remaining performance of batteries.

Beyond battery condition monitoring, DFUN BMS provides practical functions that help hospitals improve battery maintenance and system management.

• Online battery balancing — The system supports battery balancing to help reduce voltage differences between batteries and maintain a more consistent battery string condition.
• Local data storage and third-party integration — Battery monitoring data can be stored locally for historical analysis and traceability. DFUN BMS also supports Modbus, SNMP, and MQTT, allowing battery data to be integrated with third-party monitoring, building management, or infrastructure management platforms.
• Multi-channel alarms and fast fault identification — When an abnormal condition is detected, the system can provide alarms through the monitoring platform, SMS, and email, helping maintenance teams respond quickly. In addition, the LED indicator on the Cell Sensor turns red when an associated battery has an abnormal condition, making it easier for technicians to quickly locate the affected battery on site.

These functions combine continuous monitoring, data management, system integration, and rapid fault localization, helping hospital maintenance teams manage critical backup batteries more efficiently.

This supports a shift from reactive maintenance toward more proactive battery management. Historical data can also help maintenance personnel track battery trends, prioritize inspections, and plan replacement based on actual battery condition.

---

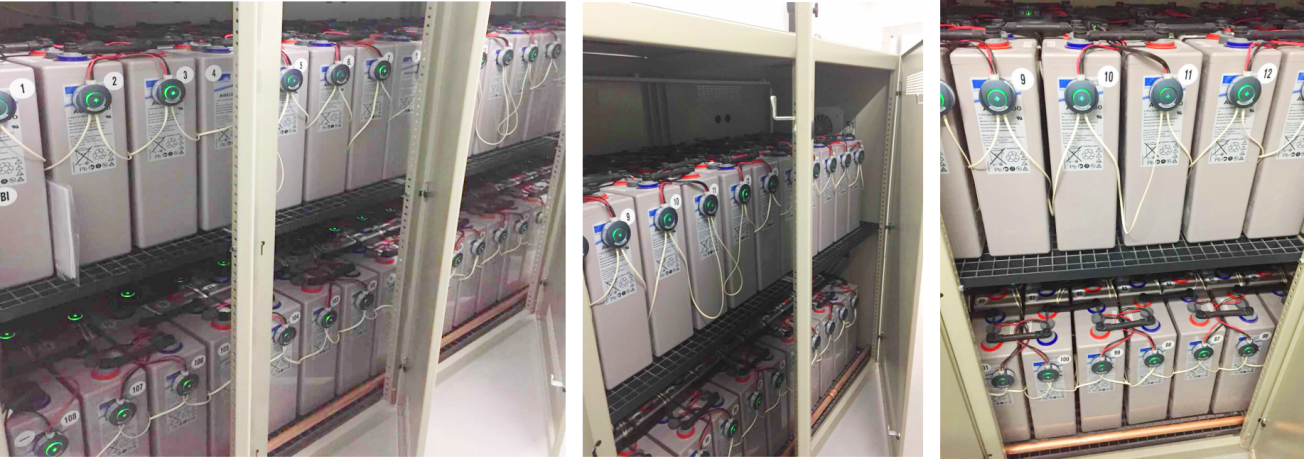

DFUN BMS Project Case: A German Hospital

A practical example of hospital battery monitoring can be found in Germany, where DFUN BMS was deployed for a hospital backup power system.

The project monitored Exide SONNENSCHEIN lead-acid batteries, providing continuous visibility into the condition of the battery system. By monitoring individual battery parameters together with string-level electrical data, the system gives operators a more comprehensive view of battery performance.

---

---

Frequently Asked Questions (FAQ)

What parameters does DFUN BMS monitor in a hospital battery system?

Individual battery voltage, negative-pole temperature, internal resistance, string voltage and ripple voltage, string current and ripple current, State of Charge (SOC), and State of Health (SOH).

Can DFUN BMS integrate with a hospital's existing building management system?

Yes. DFUN BMS supports Modbus, SNMP, and MQTT, allowing battery data to be integrated with third-party monitoring, building management, or infrastructure management platforms.

How does DFUN BMS help locate a weak battery in a large string?

The LED indicator on the Cell Sensor turns red when its associated battery has an abnormal condition, letting technicians quickly locate the affected unit on site, alongside alarms pushed through the monitoring platform, SMS, and email.

Has DFUN BMS been deployed in a real hospital environment?

Yes. DFUN BMS was deployed at a hospital in Germany, monitoring Exide SONNENSCHEIN lead-acid batteries at both the individual battery and string level.
