Ensure reliable DC backup power with real-time battery monitoring, electrolyte level detection, leakage alarms, and cell-level health analysis for flooded lead-acid and nickel-cadmium battery systems.

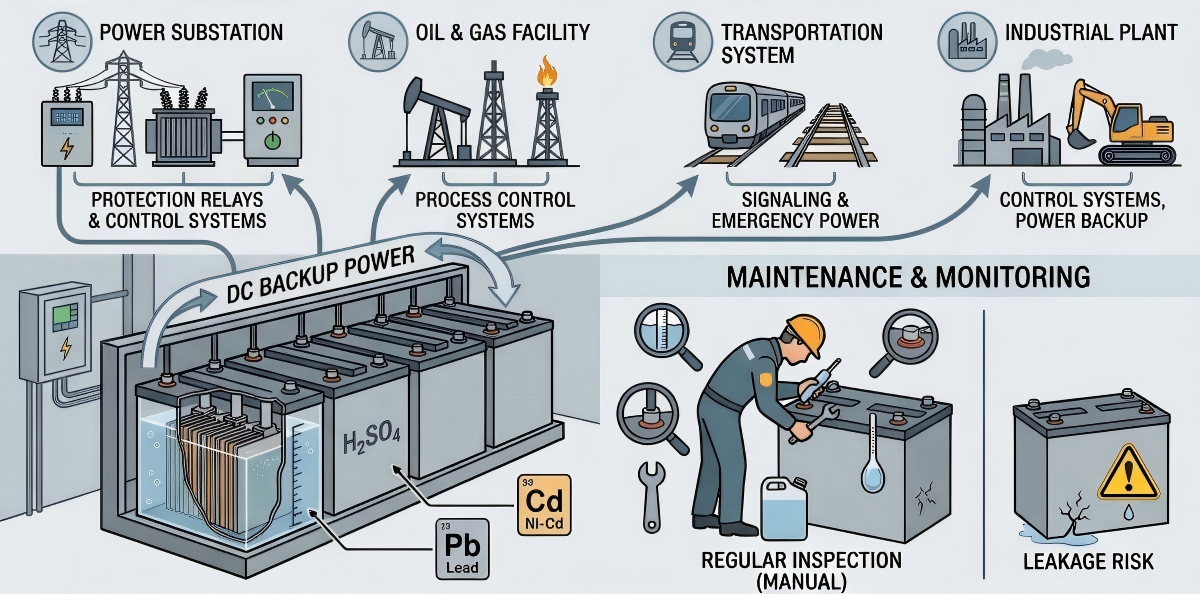

Flooded batteries, including flooded lead-acid and nickel-cadmium (Ni-Cd) batteries, have supported critical DC backup power systems for decades. Their long service life, reliability, and ability to operate in demanding environments make them a preferred choice for power substations, electrical utilities, oil and gas facilities, water treatment plants, transportation systems, and industrial sites.
These batteries supply protection relays, control systems, communication equipment, signaling systems, and emergency power when the main supply is unavailable. However, flooded battery maintenance requires regular attention to electrolyte level, cell condition, terminal integrity, and leakage risks. A hidden weak cell can compromise an entire battery string precisely when backup power is needed most.
Why Flooded Battery Maintenance Is Difficult
Manual electrolyte inspections require significant labor
Unlike sealed VRLA batteries, flooded batteries contain liquid electrolyte that must remain within the recommended operating range. Evaporation and water loss during long-term operation can lower the electrolyte level, requiring periodic inspection and replenishment.
Traditional maintenance requires technicians to enter the battery room, inspect every cell, and add distilled water when needed. A 220 V DC substation system may contain more than 100 cells. For large or geographically distributed battery fleets, repeating this process increases labor costs, maintenance time, and exposure to operational hazards.
Battery degradation is difficult to see
Flooded batteries usually remain on standby or float charge for many years. Degradation often develops gradually without visible external symptoms. Common warning signs include:
- Increasing internal resistance
- Loss of available capacity
- Cell voltage imbalance
- Abnormal temperature
- Electrolyte loss or terminal leakage
- String current and ripple abnormalities
Without continuous flooded battery monitoring, a weak cell may remain undetected until a discharge test or an actual power failure. At that point, the battery bank may no longer deliver the required backup time.
How the DFUN Flooded Battery Monitoring System Works
DFUN BMS continuously collects cell-level and string-level operating data for flooded lead-acid and Ni-Cd batteries. Instead of relying only on scheduled inspections, maintenance teams receive real-time battery health information, alarms, and historical trends that support condition-based maintenance.
| Monitoring Level | Parameters | Operational Value |
|---|---|---|
| Individual cell | Voltage, temperature, internal resistance | Identifies weak, imbalanced, overheated, or deteriorating cells |
| Battery string | String voltage, string current, ripple voltage, ripple current | Shows charger behavior and overall DC battery system condition |
| Battery health | State of Charge (SOC), State of Health (SOH) | Supports maintenance prioritization and replacement planning |
| Flooded battery safety | Electrolyte level, terminal leakage | Reduces manual inspection and enables earlier corrective action |
Specialized Monitoring for Flooded Lead-Acid and Ni-Cd Batteries

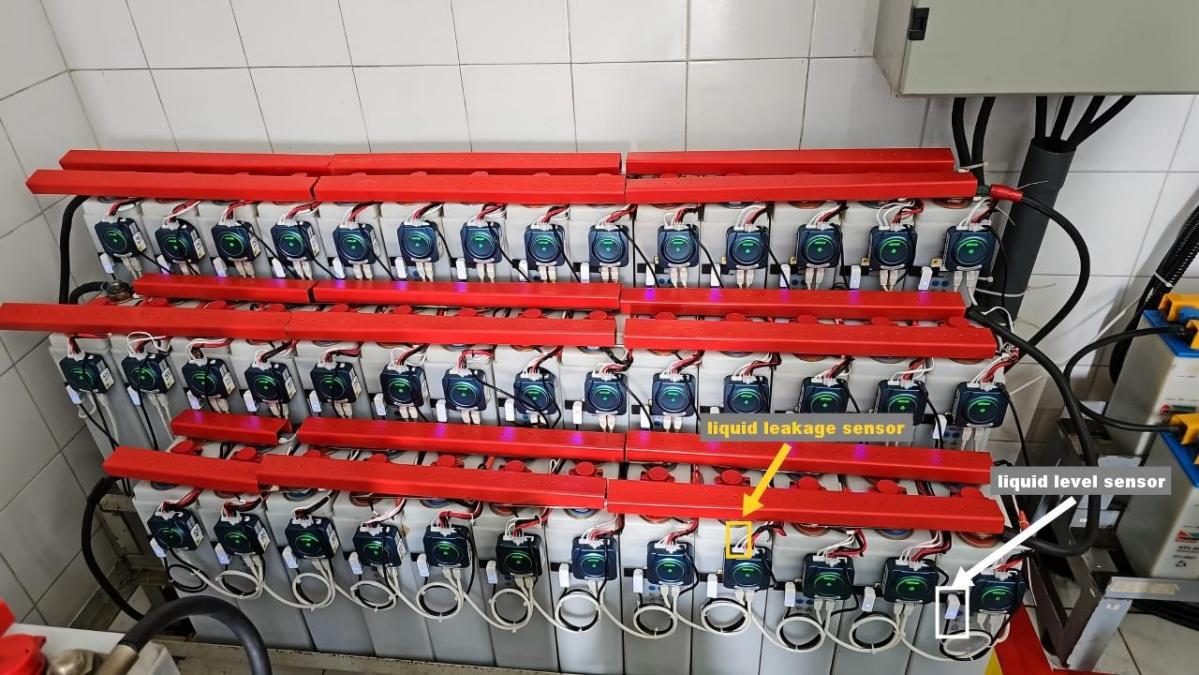

Electrolyte Level Monitoring
Electrolyte level is one of the most important maintenance points for flooded batteries. DFUN provides monitoring solutions for both transparent and non-transparent battery containers. Continuous level detection reduces the need for frequent manual checks and helps keep cells within their recommended electrolyte range.
Battery Terminal Leakage Detection
Electrolyte leakage around battery terminals can cause corrosion, weaken electrical connections, and create safety risks. DFUN leakage monitoring detects abnormal conditions early so maintenance teams can intervene before the battery, terminals, or surrounding equipment suffers serious damage.
Benefits of Online Ni-Cd and Flooded Lead-Acid Battery Monitoring
- Earlier fault detection: Identify weak cells, imbalance, rising resistance, abnormal temperatures, electrolyte loss, and leakage before they affect DC backup performance.
- Lower inspection workload: Replace frequent manual checks with remote, continuous visibility into battery condition.
- Faster fault location: Trace abnormal conditions to an individual cell or battery string instead of testing the entire bank manually.
- Condition-based maintenance: Use SOC, SOH, alarms, and historical trends to prioritize maintenance and replacement.
- Improved safety: Reduce technician exposure to battery rooms and respond earlier to leakage, corrosion, and overheating risks.
- More reliable DC backup power: Maintain the batteries that support protection, control, communications, signaling, and emergency systems.
Proven DFUN Battery Monitoring Applications Worldwide
DFUN Battery Monitoring Systems have been deployed in substations, utility facilities, waterworks, and oil and gas projects. These installations demonstrate how cell-level monitoring can support both Ni-Cd and flooded lead-acid battery fleets in demanding environments.

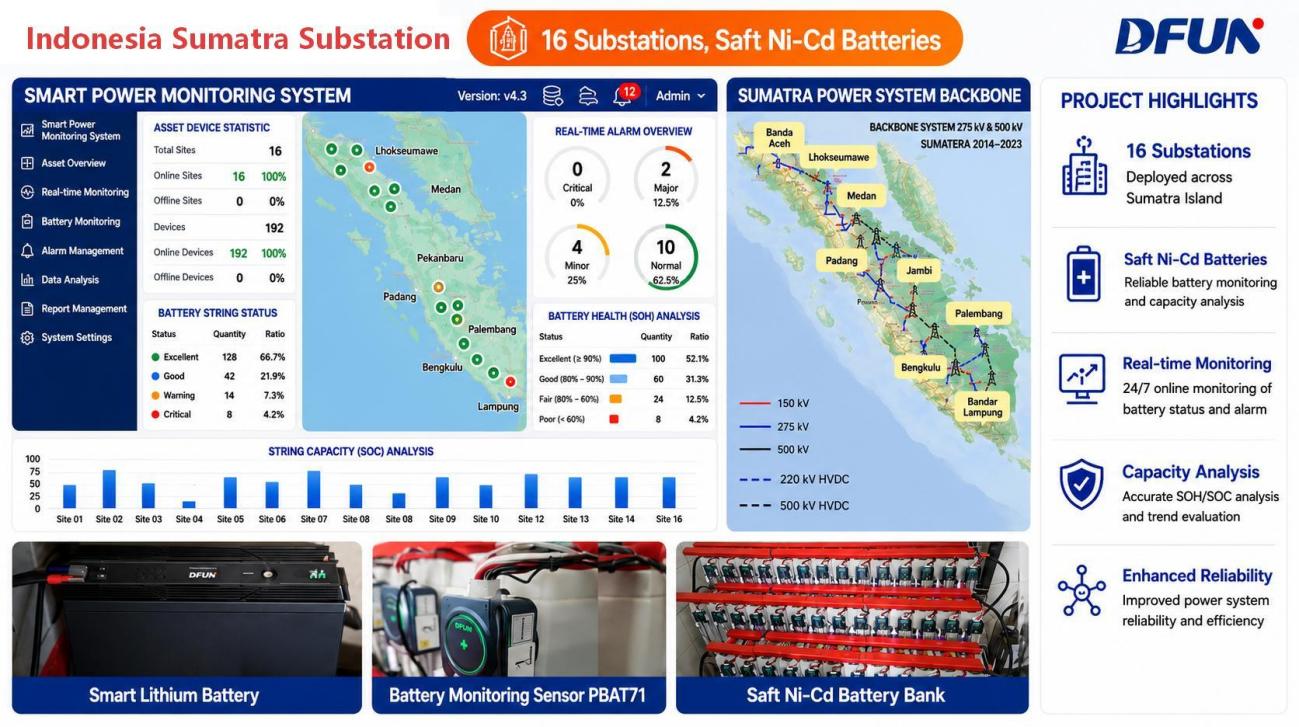

Indonesia Sumatra Substation - 48 VDC Ni-Cd Battery Monitoring System
In Indonesia Sumatra, DFUN provided a smart power monitoring solution for six sets of 48 VDC Ni-Cd battery systems. The BMS supports reliable DC backup power for the island substation through centralized battery monitoring and health visibility.

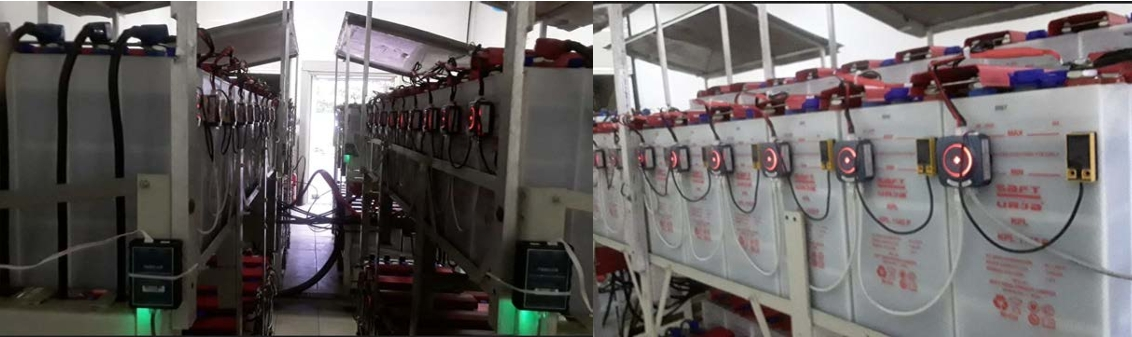

India Substations - Ni-Cd Battery Monitoring System
DFUN Ni-Cd battery monitoring solutions have been deployed at more than 40 substation sites in India. The installations help utility operators improve maintenance efficiency and reduce the risks associated with manual inspection.

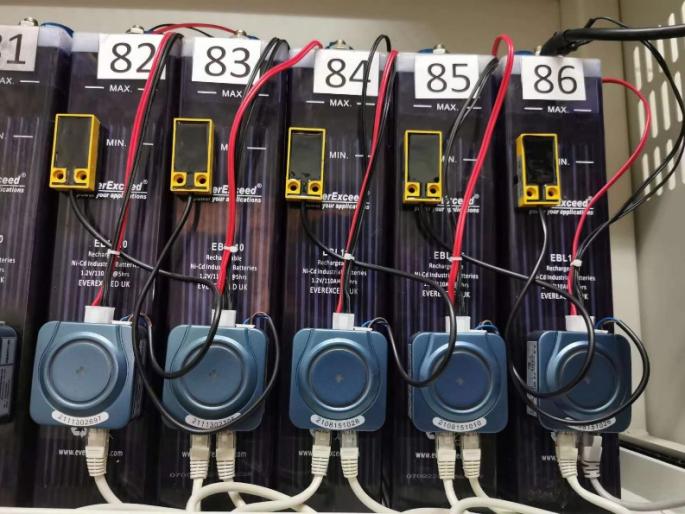

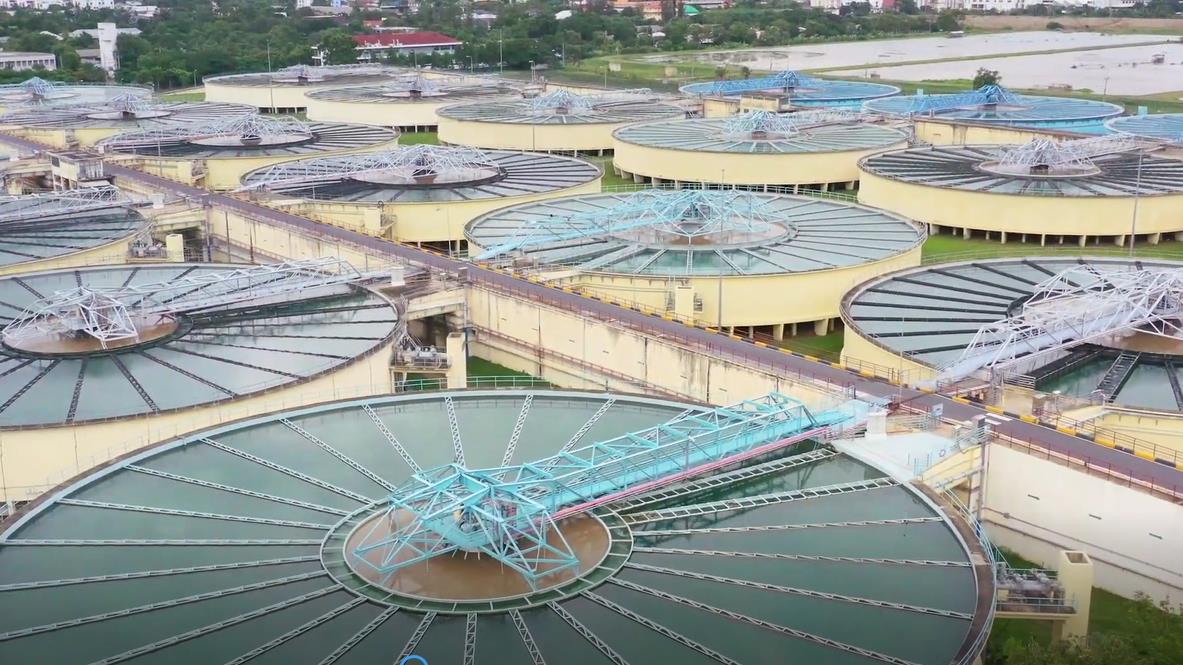

Thailand Waterworks Authority
DFUN battery monitoring equipment supports flooded battery systems used in water infrastructure, providing online visibility into individual cells and helping maintenance teams manage large battery banks more efficiently.

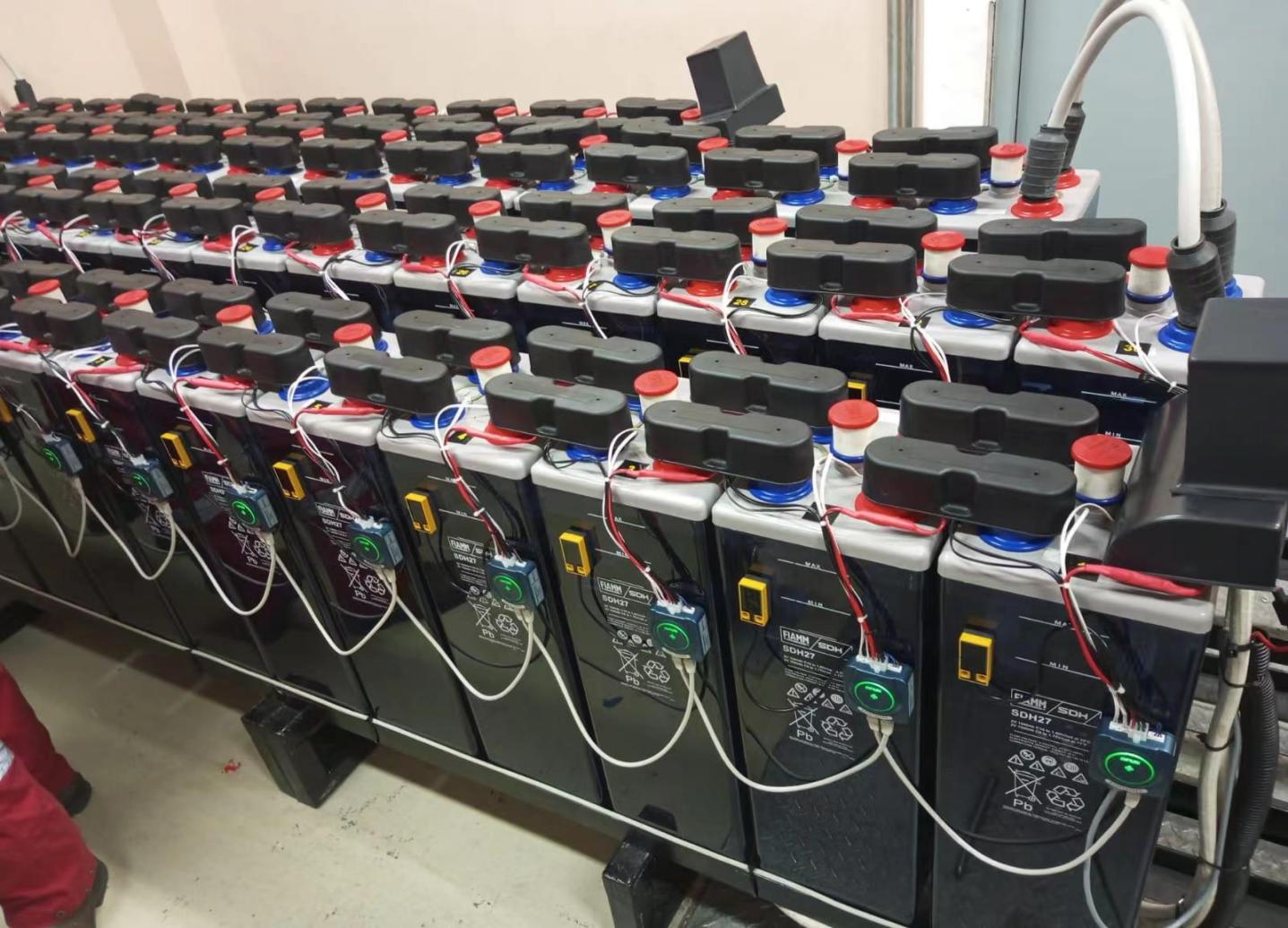

Indonesia Oil and Gas Project
For oil and gas applications, DFUN BMS provides continuous monitoring of flooded battery banks that support critical control and emergency systems, helping operators detect battery risks without relying solely on manual inspection.
Frequently Asked Questions
What is a flooded battery monitoring system?
A flooded battery monitoring system continuously tracks individual cells and complete battery strings. It measures parameters such as voltage, temperature, internal resistance, string voltage and current, ripple, SOC, and SOH. Specialized sensors can also monitor electrolyte level and terminal leakage.
Can one BMS monitor both flooded lead-acid and Ni-Cd batteries?
Yes. DFUN provides monitoring solutions for flooded lead-acid and Ni-Cd battery systems. The correct sensor and system configuration depends on battery chemistry, nominal voltage, number of cells, string arrangement, and required monitoring parameters.
Why is electrolyte level monitoring important?
Low electrolyte levels can expose battery plates, accelerate deterioration, and reduce battery reliability. Continuous electrolyte level monitoring helps maintenance teams identify cells that require attention without inspecting every battery manually.
Does online battery monitoring replace capacity testing?
No. Online monitoring provides continuous information and early warning, while a controlled capacity test verifies the battery bank's actual available capacity. The two methods provide complementary information for battery maintenance.
Where are flooded and Ni-Cd battery monitoring systems used?
Typical applications include power substations, utilities, oil and gas facilities, water treatment plants, transportation systems, industrial plants, and other sites that depend on reliable DC backup power.
Protect Critical DC Backup Power with DFUN BMS
Flooded lead-acid and Ni-Cd batteries remain essential in substations, utilities, transportation, waterworks, and industrial facilities. However, traditional manual maintenance cannot provide continuous visibility into cell condition or reveal every developing fault.
DFUN BMS combines cell-level monitoring, string-level measurement, electrolyte level detection, leakage monitoring, SOC/SOH analysis, alarms, and historical trends. This helps organizations move from labor-intensive inspection to smarter, safer, and more efficient battery maintenance.
Need a Flooded or Ni-Cd Battery Monitoring Solution?
Share your battery chemistry, cell voltage, number of cells and strings, and application requirements. A DFUN engineer will help configure the right monitoring solution for your DC backup system.
