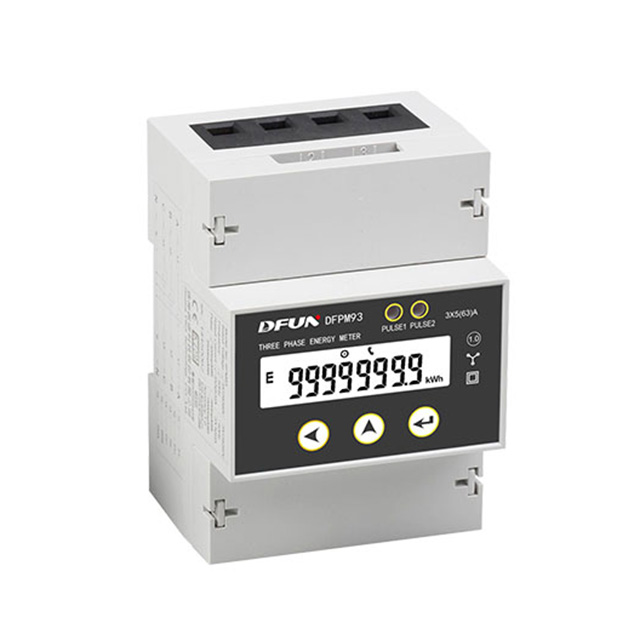

Features
- 7+1 digits LCD display (9999999.9 kWh)
- Measure U, I, P, Q, S, PF, F, kWh, kvarh, Multi-tariff energy value
- Record freeze energy for per 15 min/day
- kWh accuracy: 5(6)A Class0.5S, 5(63)A Class1.0
- Support over-voltage timing, under-voltage timing, over-load timing function
- 2 LED indicates pulse (settable for kWh or kvarh)
- LCD display prompt for phase sequence error
- 3 keys for programming 35mm DIN rail installation, standard DIN ED5002
|
Technical Specification
Rated current | Direct: 5(63)A Or 5(6)A via CT |
Rated voltage | AC220Vph-N or 120V ph-N (optional) |
Frequency | 50/60Hz (optional),range: 47 ~65Hz |
Power consumption | <2W |
Power supply | Self supply (note: RS485 won't work,when connect 1 phase) For 220VAC(L-N),range:184~276VA0 For 120VAC(L-N),range:96~144VAC |
Communication | RS485 serial. MODBUS-RTU or DL/T645 protocol Baud rate: 2400.4800.9600 Address:1~247 |
Environment | Operating temperature:-20℃~55 c Storaget emperature:-40℃~70℃Humidity:5%~95%,non-condensing |
|
