Lithium-Ion Charge: How The CC-CV Process Works And Why It Matters

How you charge a lithium-ion battery is one of the most critical factors determining its lifespan, performance, and safety. While it might seem like a routine operation, the lithium-ion charge process stands apart from older battery technologies like lead-acid or NiMH. Following best practices is key to preventing malfunctions and maximizing ROI.

Why the Lithium-Ion Charge Process is Unique

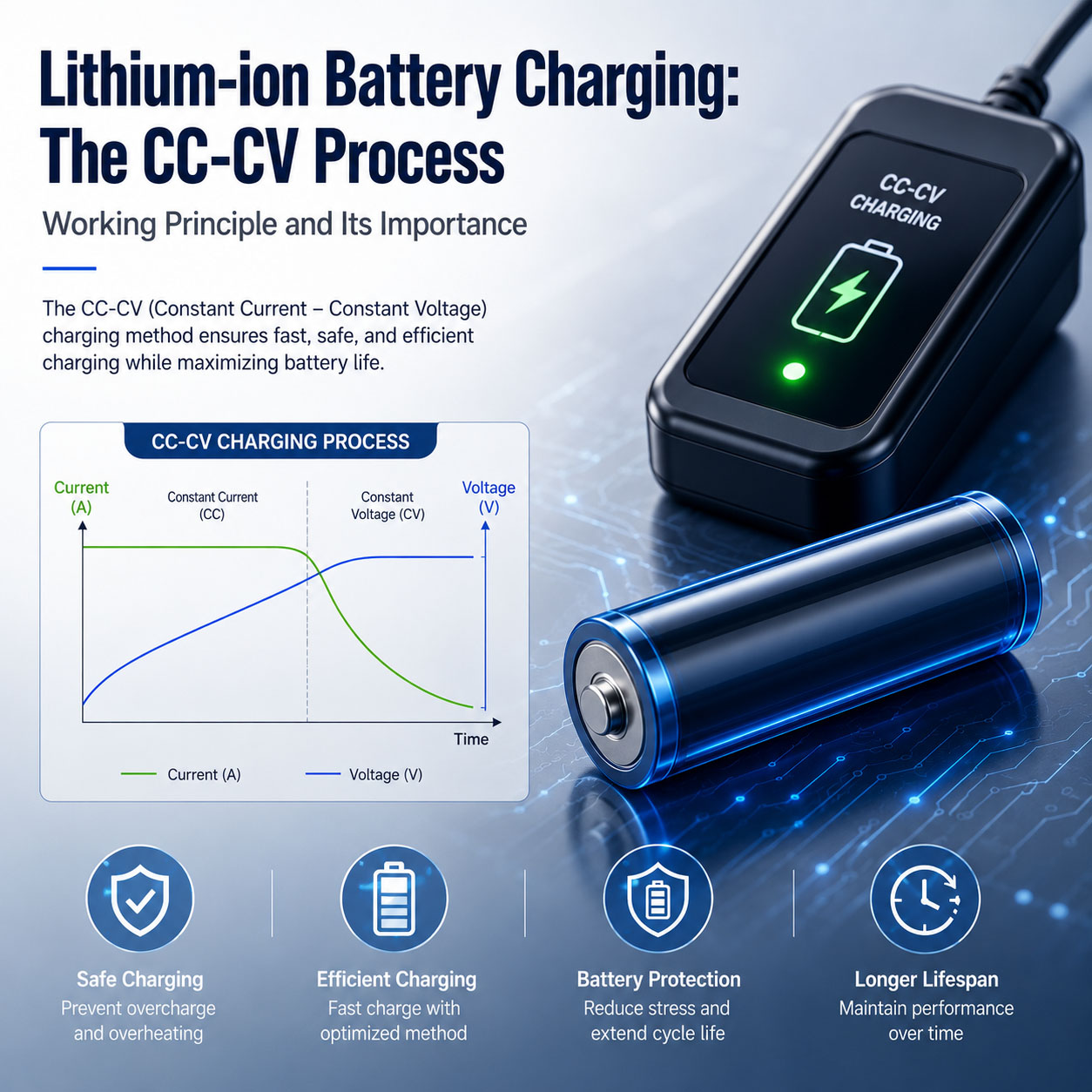

Unlike lead-acid batteries, lithium-ion cells cannot tolerate overcharging. They require a precisely controlled charging current and voltage to ensure lithium ions safely intercalate into the anode's graphite layers. The standard, industry-accepted method for a complete and safe lithium-ion charge is the CC-CV (Constant Current-Constant Voltage) algorithm. A robust Battery Management System (BMS) is critical to implementing this algorithm correctly.

Stage 1: Constant Current (CC) – The Fast Charging Phase

During the constant current phase, the charger supplies a steady, predetermined current.
• Characteristics: Voltage rises steadily while current remains fixed.
• Capacity Gained: A Li-ion battery can reach 60% to 80% of its total capacity during this stage.
• C-Rate: The ideal charging current typically ranges between 0.2C and 1.0C. For a 2000mAh cell, a 0.5C rate would be 1000mA.
• Transition Point: The CC phase continues until the cell voltage reaches its maximum limit, typically around 4.2V per cell.

Stage 2: Constant Voltage (CV) – The Protective Topping-Off

Once the 4.2V threshold is reached, the charger seamlessly switches to constant voltage mode.
• Characteristics: The charger holds the voltage steady while the current slowly tapers down.
• Why It's Necessary: Without this CV stage, the current would continue to push ions in, causing metallic lithium to plate on the anode, a primary cause of thermal runaway.
• Termination: The lithium-ion charge cycle completes, or terminates, when the charging current drops to a low "end-of-charge" level, typically between 0.02C and 0.07C.

Best Practices and BMS Monitoring

Charging management doesn't occur in a vacuum. For real-world applications like data centers or telecom base stations, a robust Battery Management System (BMS) is essential.

✅ Temperature Monitoring: Charging should ideally occur between 0°C and 45°C.
✅ Charger Selection: Always use a charger designed for Li-ion chemistry that follows the correct CC-CV profile.
✅ Voltage Precision: A quality BMS ensures each cell reaches optimal voltage, maximizing capacity for every charge cycle.

Real-World Applications in Critical Power

The principles of safe and efficient lithium-ion charging are not just academic; they are foundational to modern power backup systems. Within a UPS, lithium batteries offer high energy density for more compact backup power. The precision of the CC-CV method is vital to reliability. Additionally, the growing use of solar power and Battery Energy Storage Systems (BESS) relies on sophisticated charging algorithms to maximize the lifespan of integrating renewable energy with battery storage.

For mission-critical applications, DFUN offers advanced lithium-ion battery solutions designed to work seamlessly with our BMS platform, ensuring optimal charging performance, extended cycle life, and enhanced safety.
