PBAT61 Battery Monitoring Cell Sensor

PBAT61, an innovative product for battery monitoring system. Designed to support 2V, 6V, and 12V lead-acid batteries, PBAT61 offers comprehensive online monitoring capabilities. It enables real-time tracking of each battery cell's voltage, internal resistance, and negative terminal temperature.

Quantity:
Availability:





Inquire

Product Description

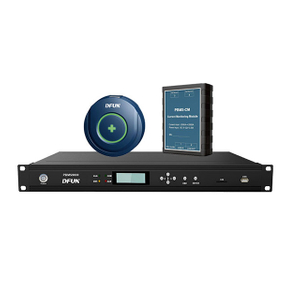

System Structure

Features

- PBAT61-02 for 2V battery, PBAT61-06 for 6V battery, PBAT61-12 for 12V battery

- Monitor individual battery voltage, internal temperature (negative pole), .Impedance(ohmic value)

- Auto-balancing

-Measure lead-acid battery

Techinical Specification

Item	Rated Input Voltage	Measuring Rnage
		Voltage	Internal Temperature	Impedance	Power Consumption
PBAT61-02	02V	1.6~2.6V (±0.2%)	-20℃~85℃（±0.5%）	Range:0.1mΩ~50mΩ Repeatability error:1.0%±25μΩ Conformity error: 1.5%±25μΩ	Running: <70mW Sleeping: <8mW
PBAT61-06	06V	4.8~10V (±0.2%)
PBAT61-12	12V	7.5~15.6V(±0.2%)
