- Monitor Max. 4 strings, in a total of 420 batteries - Measure battery individual voltage, string voltage & current, internal temperature, impedance, SOC, SOH - 2 AI ports for ambient temperature & humidity sensor (optional), 1 DO port for sound and light alarm (optional), 4DI ports for digital input connecting (optional) - Support SNMP, Modbus TCP protocol - Support RESTful API, JSON, XML format - Support SMS/Email alarm - Support 4G data upload to the 3rd party |
System Advantage
The PBAT-Gate is an intelligent battery monitoring system designed for small-scale data centers and UPS systems. It provides 24/7 real-time monitoring for up to 4 battery strings totaling 480 batteries.
The system measures key parameters like cell voltage, temperature, string current, and impedance. The built-in web server enables data visualization and analysis. Automatic alarms can be sent out via SMS and email.
PBAT-Gate supports industry-standard Modbus TCP and SNMP protocols for seamless integration. It also offers 4G wireless transmission capabilities for remote monitoring and cloud integration.
Pre-configured cabinets with pre-wiring of all components are available for quick installation. PBAT-Gate optimizes battery maintenance and prevents downtime from battery failures in critical power applications.
Battery Type | Lead-acid Battery |
Application | Data Center, UPS |
Operating System | Embedded Linux |
Memory | 512MB flash, 8G TF memory card |
Total Strings | 1~4 Strings |
Cell Voltage | 2V (1.6~2.6V) 6V (4.8~10V) 12V (7.5~15.6V) |
Sleeping Mode | ≤10mA |

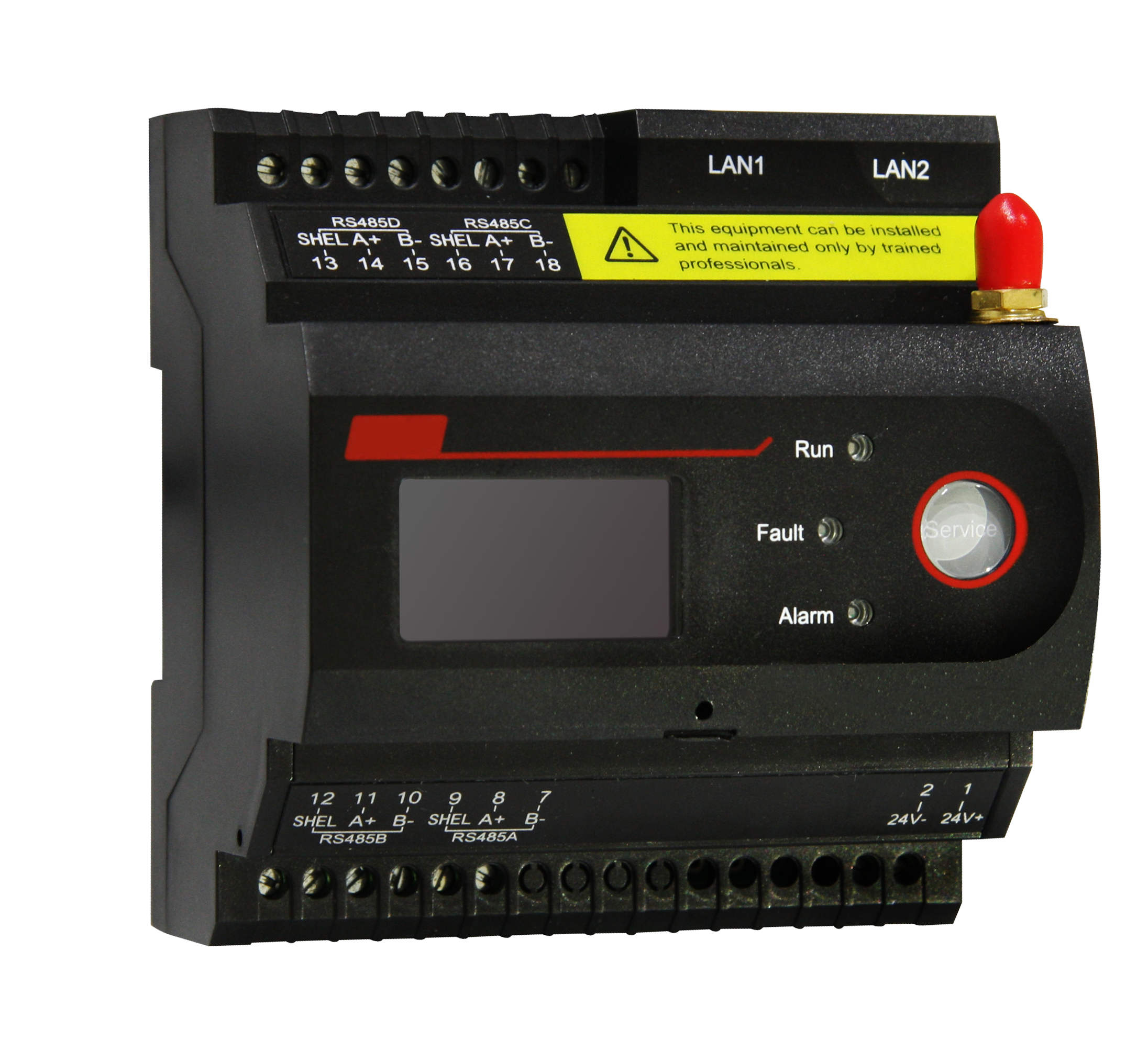

Communication | 4 RS485 Serial ports, 2 Ethernet ports (4CL), 2 RS485 Serial ports, 2 Ethernet ports (2ZL) |
Communication Protocol | SNMP, Modbus TCP |

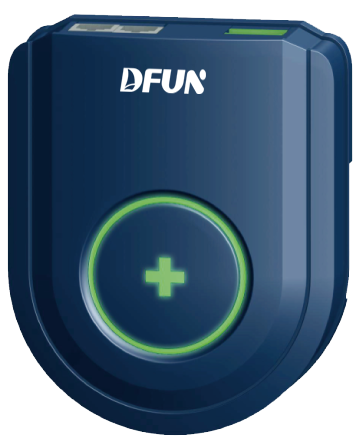

Weight | Gateway: 650g String Sensor: 400g Battery Sensor: 120g |
Baud rate | 1200bps ~ 115200bps |
Sensor LED Indicates | Green: Normal Status Red: Abnormal Status |

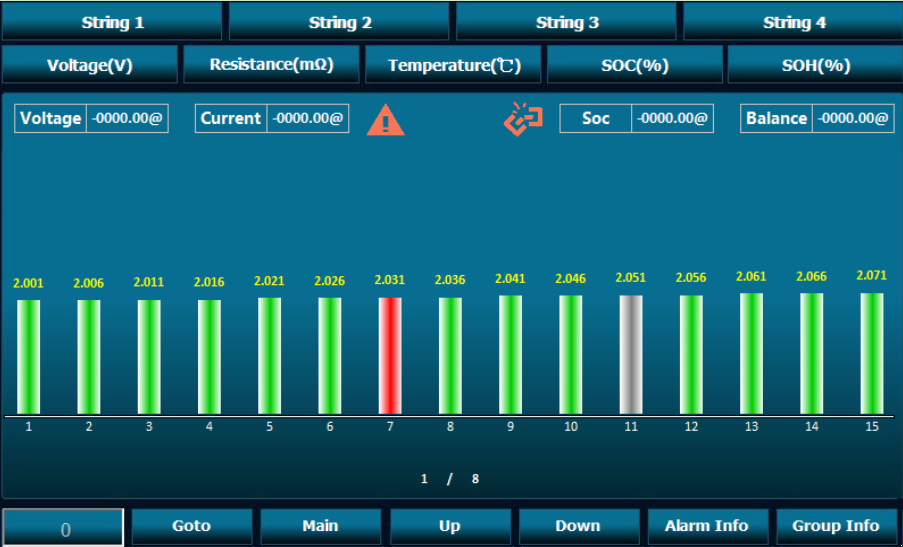

HMI | 10.1’’ inch touch-screen HMI for local display and operation (Optional) |
Operation Temperature | -15℃ ~ 55℃ |
Operation Humidity | 10% ~ 95% Non-condensing |
Certification | EMC, ROHS, CE, ISO9001, ISO14001, ISO45001 |
- Monitor Max. 4 strings, in a total of 420 batteries - Measure battery individual voltage, string voltage & current, internal temperature, impedance, SOC, SOH - 2 AI ports for ambient temperature & humidity sensor (optional), 1 DO port for sound and light alarm (optional), 4DI ports for digital input connecting (optional) - Support SNMP, Modbus TCP protocol - Support RESTful API, JSON, XML format - Support SMS/Email alarm - Support 4G data upload to the 3rd party |
System Advantage
The PBAT-Gate is an intelligent battery monitoring system designed for small-scale data centers and UPS systems. It provides 24/7 real-time monitoring for up to 4 battery strings totaling 480 batteries.
The system measures key parameters like cell voltage, temperature, string current, and impedance. The built-in web server enables data visualization and analysis. Automatic alarms can be sent out via SMS and email.
PBAT-Gate supports industry-standard Modbus TCP and SNMP protocols for seamless integration. It also offers 4G wireless transmission capabilities for remote monitoring and cloud integration.
Pre-configured cabinets with pre-wiring of all components are available for quick installation. PBAT-Gate optimizes battery maintenance and prevents downtime from battery failures in critical power applications.
Battery Type | Lead-acid Battery |
Application | Data Center, UPS |
Operating System | Embedded Linux |
Memory | 512MB flash, 8G TF memory card |
Total Strings | 1~4 Strings |
Cell Voltage | 2V (1.6~2.6V) 6V (4.8~10V) 12V (7.5~15.6V) |
Sleeping Mode | ≤10mA |
Communication | 4 RS485 Serial ports, 2 Ethernet ports (4CL), 2 RS485 Serial ports, 2 Ethernet ports (2ZL) |
Communication Protocol | SNMP, Modbus TCP |
Weight | Gateway: 650g String Sensor: 400g Battery Sensor: 120g |
Baud rate | 1200bps ~ 115200bps |
Sensor LED Indicates | Green: Normal Status Red: Abnormal Status |
HMI | 10.1’’ inch touch-screen HMI for local display and operation (Optional) |
Operation Temperature | -15℃ ~ 55℃ |
Operation Humidity | 10% ~ 95% Non-condensing |
Certification | EMC, ROHS, CE, ISO9001, ISO14001, ISO45001 |
