- Apply to DC power systems like substation, power plants, etc
- 24/7 online monitoring & remote alarm notifications
- Monitor Max. 6 strings and 420pcs batteries in total
- Measure Ni-Cad, Lead-Acid, and muti-pole battery
- Powered by communication bus, no consuming battery power
- Anti-interference design, support to connect with high-frequency UPS
- Anti-reverse protection, no damaging the cell sensor and battery
- Auto-sensing for the battery sensor's ID address
- Support monitoring battery leakage and liquid level (optional)
- Support extension sensor for measuring ambient temperature & humidity, leakage current, insulation resistance (optional)
- Comply with IEEE 1188-2005
Battery Type | Ni-Cad, Lead Acid, Multi-pole Battery |
Application | DC Power System (Substation, Train Locomotive) |
CPU | ARM cortex A7 528MHz |
Memory | 512MB flash, 4G EMMC+ 8G TF memory card |
Power Supply | 2 channels |

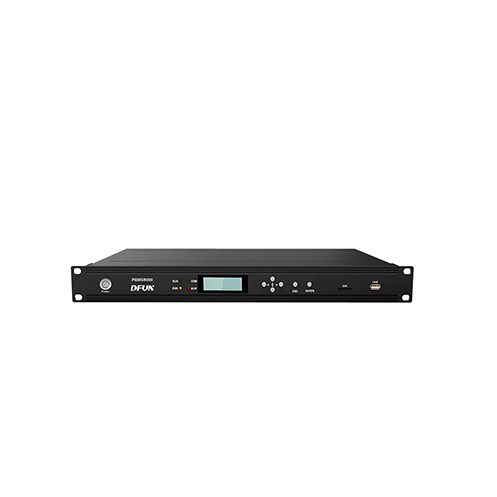

Dimension | Standard 19-inch 1U Device ( 483mm×206mm×44.5mm) |
Total Strings | Max.6 strings, total≤420pcs |
Cell Voltage | 2V / 1.2V, 12V |
Optional Function | Battery Leakage and Liquid Level Monitoring |
Sensor LED Indicates | Green: Normal Status Red: Abnormal Status |
Weight | PBMS9000Pro: 2.55kg Battery Sensor: 120g |
Communication protocol | Modbus, SNMP, MQTT and IEC61850 |
Baudrate | 9600bps, 19200bps, 38400bps ( Optional ) |
Sensor LED Indicates | Green: Normal Status Red: Abnormal Status |
HMI | 10.1- inch touch-screen HMI for local display and operation (Optional) |
Operation environment | Operating temperature: -15℃ ~ 60℃ Storage temperature: -40℃ ~ 70℃ Humidity: 10 ~ 95% RH, non-condensing |
Certification | EMC, ROHS, CE, ISO9001, ISO14001, ISO45001 |
HMI-9000Pro
10.1-inch Touch Screen HMI Local Display Module
PBAT-BOX-260
Cabinet for pre-wiring for PBMS9000Pro and HMI-9000Pro
PBMS-VM
Measurement Layer String Voltage Sensor
PBMS-LS-O35
DC leakage current sensor
H-THDRJ45
Ambient Temperature & Humidity Sensor
PBMS-IM
DC Insulation Resistance Sensor
- Apply to DC power systems like substation, power plants, etc
- 24/7 online monitoring & remote alarm notifications
- Monitor Max. 6 strings and 420pcs batteries in total
- Measure Ni-Cad, Lead-Acid, and muti-pole battery
- Powered by communication bus, no consuming battery power
- Anti-interference design, support to connect with high-frequency UPS
- Anti-reverse protection, no damaging the cell sensor and battery
- Auto-sensing for the battery sensor's ID address
- Support monitoring battery leakage and liquid level (optional)
- Support extension sensor for measuring ambient temperature & humidity, leakage current, insulation resistance (optional)
- Comply with IEEE 1188-2005
Battery Type | Ni-Cad, Lead Acid, Multi-pole Battery |
Application | DC Power System (Substation, Train Locomotive) |
CPU | ARM cortex A7 528MHz |
Memory | 512MB flash, 4G EMMC+ 8G TF memory card |
Power Supply | 2 channels |
Dimension | Standard 19-inch 1U Device ( 483mm×206mm×44.5mm) |
Total Strings | Max.6 strings, total≤420pcs |
Cell Voltage | 2V / 1.2V, 12V |
Optional Function | Battery Leakage and Liquid Level Monitoring |
Sensor LED Indicates | Green: Normal Status Red: Abnormal Status |
Weight | PBMS9000Pro: 2.55kg Battery Sensor: 120g |
Communication protocol | Modbus, SNMP, MQTT and IEC61850 |
Baudrate | 9600bps, 19200bps, 38400bps ( Optional ) |
Sensor LED Indicates | Green: Normal Status Red: Abnormal Status |
HMI | 10.1- inch touch-screen HMI for local display and operation (Optional) |
Operation environment | Operating temperature: -15℃ ~ 60℃ Storage temperature: -40℃ ~ 70℃ Humidity: 10 ~ 95% RH, non-condensing |
Certification | EMC, ROHS, CE, ISO9001, ISO14001, ISO45001 |
HMI-9000Pro
10.1-inch Touch Screen HMI Local Display Module
PBAT-BOX-260
Cabinet for pre-wiring for PBMS9000Pro and HMI-9000Pro
PBMS-VM
Measurement Layer String Voltage Sensor
PBMS-LS-O35
DC leakage current sensor
H-THDRJ45
Ambient Temperature & Humidity Sensor
PBMS-IM
DC Insulation Resistance Sensor
