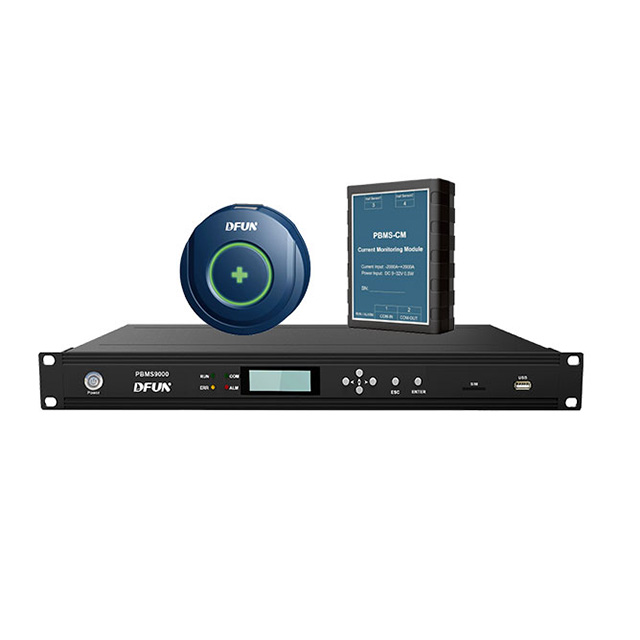

PBMS9000 Battery Monitoring Solution

PBMS9000 solution integrated into the feature of the embedded web page, historical data storage, multiple data upload, USB data backup, dual-source etc. It's suitable for UPS, larger-scale data centers and multi-site applications.
Availability:
Quantity:



Feature


- 24/7 hours on-line monitoring & remote alarms notification

- Apply to UPS and data center application

- Measure lead-acid or multi-pole battery

- Ring communication, any communication failure will not affect other sensors communication

- Monitor battery voltage, current, impedance, insulation resistance, ripple current & voltage, SOC, SOH, etc.

- Support Modbus, SNMP, MQTT and IEC61850 protocols

- Auto-sensing for the battery sensor's ID address

- Dual-source to avoid power shutdown

- Anti-interference design, support to connect with high-frequency UPS

- Comply with IEEE 1188-2005

System Structure



Technical Specification


Battery   type

Lead   acid Battery, Multi-pole Battery

Application

Data   Center, UPS

CPU

ARM   cortex A7 528MHz

Memory

512MB   flash,  4G EMMC+ 8G TF memory card

Total   strings

Max.6   strings, total≤420pcs

Cell   voltage

2V,   6V, 12V

Up-link   communications

2   Ethernet ports (10/100M), MODBUS-TCP, SNMP, IEC61850

1   RS485 port, MODBUS-RTU, baudrate:   9600bps, 19200bps,  38400bps (optional)

Down-link   communications

6   channels RJ11 ports, each port Max. connect ≤ 70 batteries, total Max. 420pcs

Communication   protocol

Modbus,   SNMP, MQTT and IEC61850

Baudrate

1200bps   ~ 115200bps

Sensor   LED indicates

Green:   normal status             Red: abnormal   status

HMI

10.1-   inch touch-screen HMI for local display and operation (Optional)

Operation  environment

Working   temperature: -15°C ~ 55°C  Storage   temperature: -40°C ~ 70°C  Humidity: 5%   ~ 95% non-condensing

Certification

EMC,   ROHS, CE, ISO9001, ISO14001, ISO45001


What is included?


Optional Modules

HMI-9000

10.1-inch Touch Screen HMI Local Display Module

PBAT-BOX-260

Cabinet for pre-wiring for PBMS9000 and HMI-9000

PBMS-VM

Measurement Layer String Voltage Sensor


battery management system bms

H-THDRJ45

Ambient Temperature & Humidity Sensor

12v 100ah bms

PBMS-IM

DC Insulation Resistance Sensor

Project Reference

Video Description




PBMS9000 Solution Demo Demo
