PBMS9000Pro NiCad and VLA/VRLA Cell Battery Management System

The PBMS9000Pro battery monitoring solution with PBAT81 battery cell sensor by DFUN can display and alarm failed batteries to realize the automation of battery detection and failure anticipation detection. PBAT81 is a highly integrated intelligent sensor module that can be used to monitor valve-regulated lead-acid batteries and nickel-cadmium batteries. It can quickly and accurately measure the parameters like voltage, resistance, and negative-pole temperature of the battery cells online.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • PBMS9000Pro

  • DFUN


PBMS9000Pro NiCad and VLA/VRLA Cell Battery Management System

PBMS9000Pro NiCad and VLA/VRLA Cell Battery Management System Heading

  • Real-time voltage measurement

  • Onlineresistance measurement

  • Negative-pole temperature measurement

  • Cellsensorpowered by communication cable

  • RS485buscommunication

  • Supportone-click search address

  • Built-in anti-reverse circuit, batteries and sensors would not be damaged if the test wires circuited reverse

  • Built-in fuse to provide high reliability and anti-interference ability

  • DC3000Visolation voltage

  • Distributed installation, easy wiring

  • Supportcascade communication

  • Passivebalance


PBMS9000Pro NiCad and VLA/VRLA Cell Battery Management System

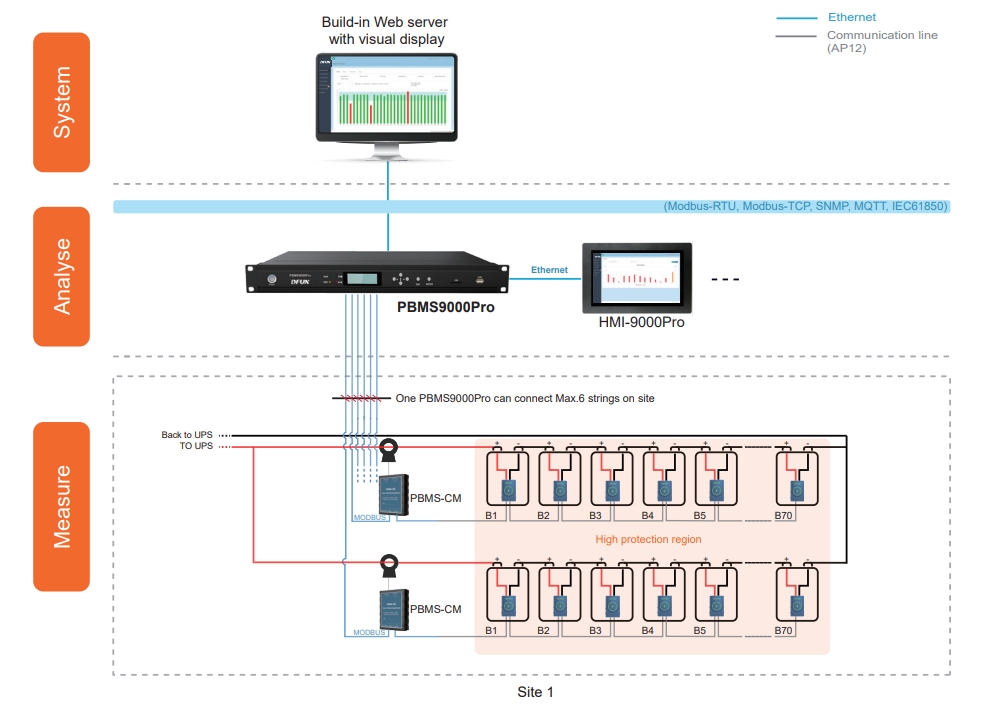

System Structure



PBMS9000Pro NiCad and VLA/VRLA Cell Battery Management System System Structure

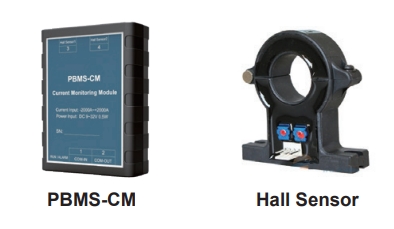

PBMS-CM String Current Measuring Sensor & Hall Sensor

- One string need 1 PBMS-CM, each PBMS-CM with 2 hall sensor ports

- Measure battery string charge and discharge current, ripple current

- Measure multi-pole battery's string charge and discharge current and ripple current with flexiable module and hall sensor

- Accessories:

1) Hall sensor and cable: range from 0~±1000A with 2m cable

2) Communication cable : 5m with RJ45 port

PBMS-CM String Current Measuring Sensor & Hall Sensor


PBMS9000Pro NiCad and VLA/VRLA Cell Battery Management System Video Description




PBMS9000Pro Solution Demo

Website：http://120.198.218.87:18089


Please leave contact information for Demo password.

Contact Us


download DFUN PBMS9000Pro for Chemical Plant 2023 V3.0.pdf
