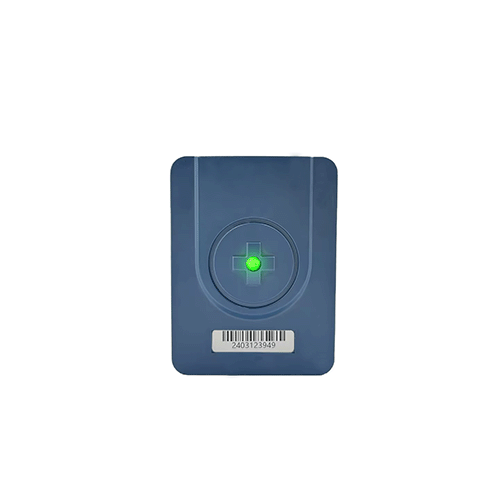

PBAT51 Battery Monitoring Cell Sensor
DFUN PBAT-51 Battery Cell Sensor is designed for back-up source system, whichcan real-time monitor the lead acidbattery voltage, impedance and negativetemperature. Early warning for the battery thermal runaway and excessive imped-ance. And with the function of battery balance, prolong the battery life.
| Quantity: | |
|---|---|
-
PBAT51
-
DFUN
Product Introduction
DFUN PBAT-51 Battery Cell Sensor is designed for back-up source system, whichcan real-time monitor the lead acidbattery voltage, impedance and negativetemperature.
Early warning for the battery thermal runaway and excessive imped-ance. And with the function of battery balance, prolong the battery life.
Basic Function
- PBAT51-02 is for 2V Battery, PBAT51-12 is for 12V Battery
- Monitoring individual Battery Voltage, Internal temperature(Negative Pole),impedance (Ohmic Value)
- Auto-Balancing
- 3M Adhesive Tape Mounting
- Accessories:
1) Battery Measuring Cable: 30cm
2) Communication Cable: 40cm & 70cm with RJ11 port (Optional)
Running Status

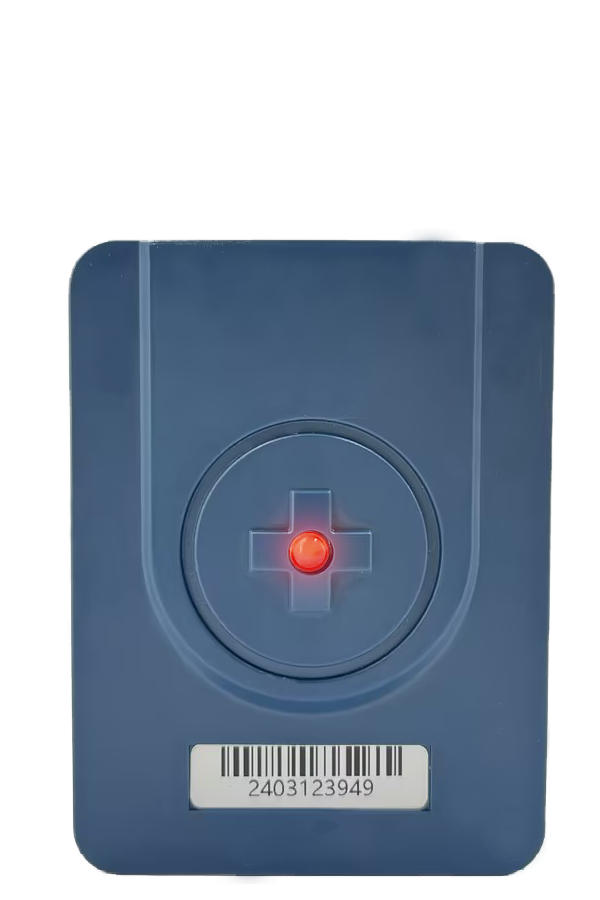

Abnormal Status
Technical Specification
| Item | Rated Input Voltage | Measuring Range | ||
| Voltage | Internal Temperature | Impedance | ||
| PBAT51-02 | 02V | 1.6V~2.6V(±0.2%) | -20°C~85°C(+0.5°C) | Range:0.1~50mgRepeatability accuracy: 1.0%+25uS |
| PBAT51-12 | 12V | 7.5V~15.6V(+0.2%) | Consistency accuracy: 2.0%+50us2 | |
