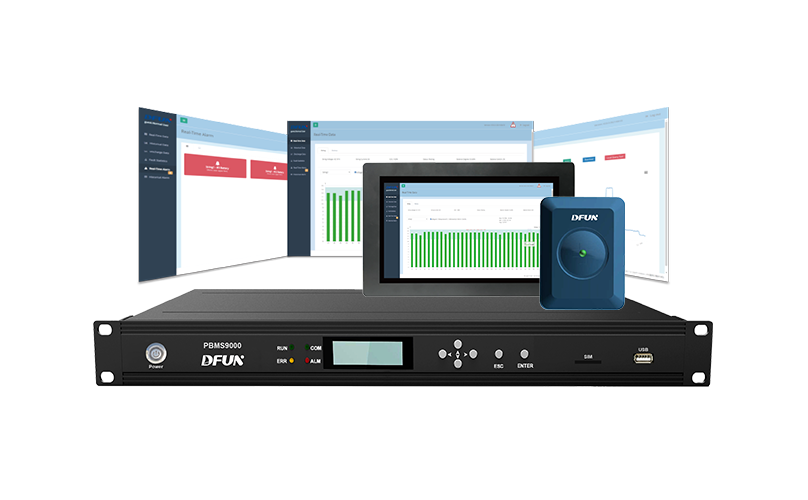

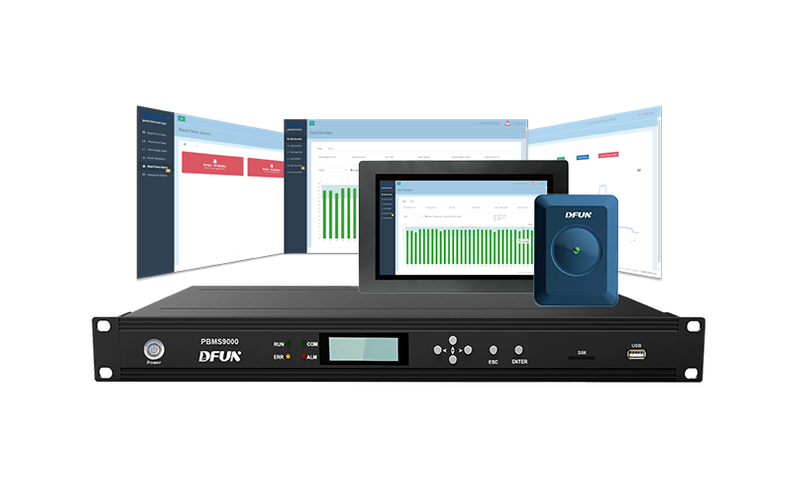

PBMS9000 Battery Monitoring System Main Controller

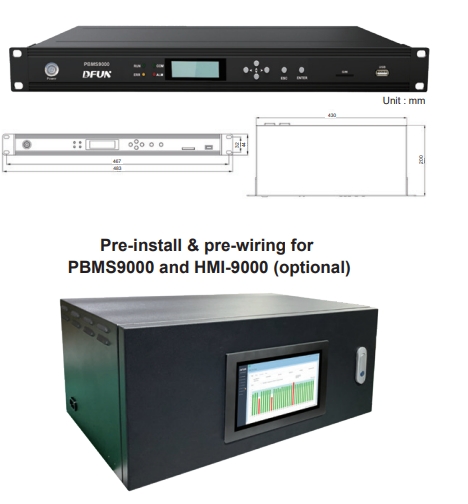

- Standard 1 U design for distribution cabinet
- Dual-source to avoid power shutdown
- Built-in web server with visual display

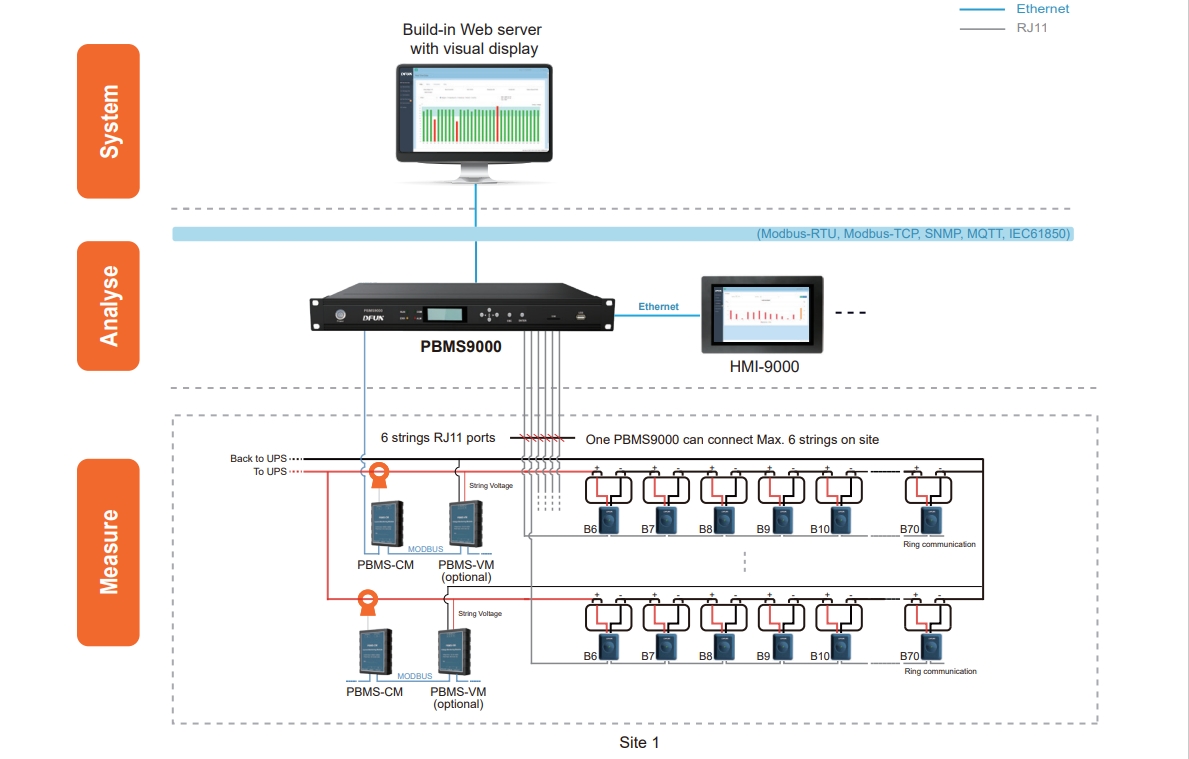

- Monitor Max. 6 strings battery, in a total of 420 batteries

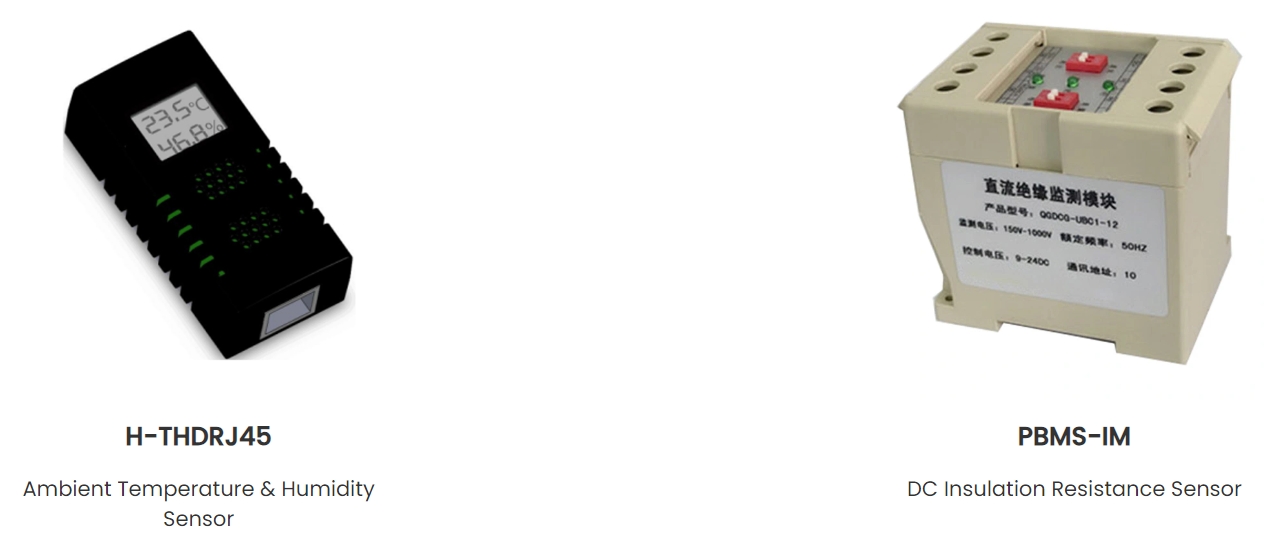

- Measure battery string current & voltage, ripple voltage & current, charge & discharge current, internal temperature, impedance, insulation resistance, ambient temperature & humidity, SOC and SOH
- Alarm message by SMS or Email
- Support Modbus-TCP, Modbus-RTU, SNMP and IEC61850 protocols
- Support MQTT for JSON format to data upload
- 1 RS485 port, 2 Ethernet ports and 1 4G Antenna port to data upload
- 6 DI ports (digital Input connecting)
- 6 DO ports (sound and light alarm)

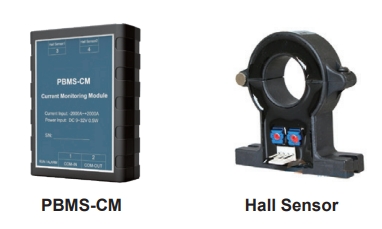

PBMS-CM String Current Measuring Sensor & Hall Sensor
- One string need 1 PBMS-CM, each PBMS-CM with 2 hall sensor ports
- Measure battery string charge and discharge current, ripple current
- Measure multi-pole battery's string charge and discharge current and ripple current with flexiable module and hall sensor
- Accessories:
1) Hall sensor and cable: range from 0~±1000A with 2m cable
2) Communication cable : 5m with RJ45 port

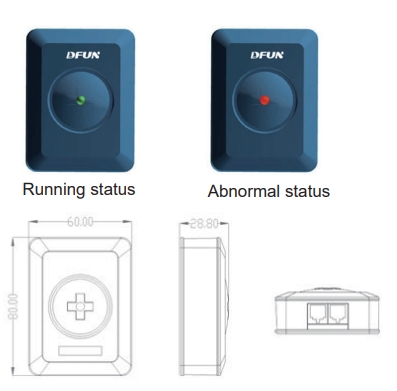

PBAT51-02/PBAT51-12 Battery Cell Sensor
- PBAT51-02 is for 2V Battery, PBAT51-12 is for 12V Battery
- Monitoring individual Battery Voltage, Internal temperature (Negative Pole), impedance (Ohmic Value)
- Auto-Balancing
- 3M Adhesive Tape Mounting
- Accessories:
1) Battery Measuring Cable: 30cm
2) Communication Cable: 40cm & 70cm with RJ11 port (Optional)
