| kuchuluka: | |
|---|---|

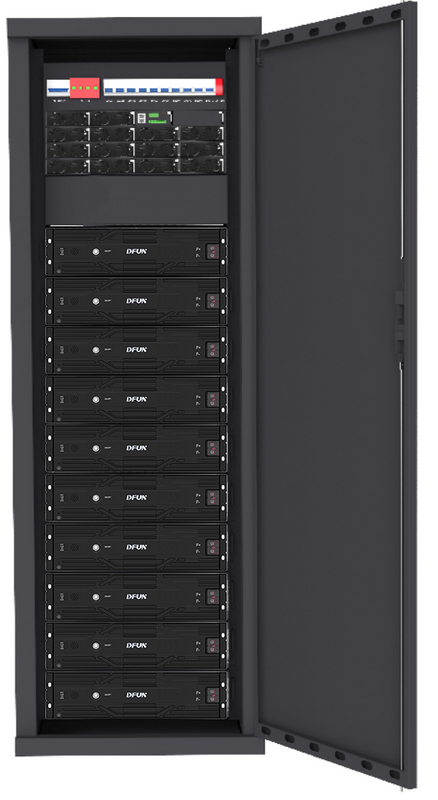

Mapangidwe ophatikizika: 48V DC dongosolo lophatikizira gawo lokonzanso, gawo lowunikira, gawo logawa mphamvu, batire, ndi zonse m'modzi.
Smart lithiamu batire: Batire yanzeru ya lithiamu imathandizira kusakanikirana kwa mabatire atsopano ndi akale ndi mabatire a lead-lithiamu, ndipo ili ndi ntchito yolimbikitsira mwanzeru kuti ikwaniritse zosowa za magetsi akutali a 5G.
Mapangidwe apamwamba kwambiri: mpaka 600A (36KW)
Thandizo lamphamvu kwambiri: Thandizani mpaka magulu 10 a 48V100AH kapena 48V165AH anzeru mabatire a lithiamu
Thandizo lamagetsi ambiri: Imathandizira mains, dizilo, ndi solar.
Thandizani makabati amachitidwe angapo molumikizana: onjezerani mphamvu zotulutsa
Thandizani njira zingapo zosungira mphamvu: njira yometa nsonga, mawonekedwe apamwamba kwambiri, etc.
Sungani malo oyika zida zoyankhulirana
Mtundu Woyankhira |
Solution 1 (Panja) |
Solution 2 (M'nyumba) |
|
Wazinthu Mtundu |
Chithunzi cha DFCA48-O-XXX-XXX-X |
Chithunzi cha DFCA48-I-XXX-XXX-X |
|
Dongosolo |
kukula (W × D × H) |
700mm × 800mm × 2200mm |
600-800-2000mm |
Kulemera |
<256kg (popanda ma module okonzanso, batire, zida zina zomwe mungasankhe) |
<200kg (popanda ma module okonzanso, batire, zida zina) |
|
Kuyika mumalowedwe |
Kuyika pansi (Kunja) |
M'nyumba |
|
Cabling Mode |
Kuchokera pansi |
Kuchokera pansi kapena pamwamba |
|
Maintenance Mode |
Kuchokera kutsogolo |
Kuchokera kutsogolo ndi kumbuyo |
|
za Cabinet Zinthu |
SGCC kanasonkhezereka pepala ndi kukana dzimbiri mwamphamvu |
SPCC apamwamba ozizira adagulung'undisa zitsulo mbale |
|
wa nduna Mtundu |
Imvi yowala: RAL 7035 |
imvi yowala: RAL9007 |
|
Pansi Bar |
7×M6,1×M8 |
||
Mtengo wa EMC |
Gawo la EN300386A |
||
Mlingo wa Chitetezo |
IP55 |
IP20 |
|
Batiri |
Choyika chamkati & Malo |
3U, 19-inch rack (malinga ndi kasinthidwe kwenikweni) |
|
Mtundu Wabatiri |
Max. 10pcs DFPA48100-S/DFPA48165-S |
||
Njira Yozizirira |
DC Air Conditioner |
DC48V 1000W |
AYI |
P ower distribution unit |
AC Kulowetsa kwa |
220/384Vac magawo atatu mawaya anayi, ogwirizana ndi gawo limodzi la magawo atatu: 200-240 Vac/346-415 Vac single-gawo: 200-240Vac, kuthandizira zolowetsa jenereta ya dizilo |
|
ATS Mtengo wa |
ATS-63A1/ATS-63A2/ATS-125C1 (posankha, pazolowetsa ziwiri za AC) |
||
za PV Zolemba |
Mphamvu yolowera: 102V (70-150V), Mphamvu yolowera 63A/2P*4 |
||
DC Zotsatira za |
Voltage:Normal Mode: 42VDC-58VDC, Boost Module: 53.5VDC kuti ithandizire 57VDC yosasinthasintha (iyenera kuyikidwa ndi Smart Lithium Battery) |
||
Masiku Ano Max.36kW(600A) |
|||
Nthambi ya Battery |
MCB: 125 × 10 |
||
Nthambi ya LLVD |
2×125AMCB,3×63AMCB (LLVD1) |
||
BLVD Chithunzi cha |
2×32AMCB,2×40AMCB,4×63AMCB,4×63AMCB,2×125AMCB |
||
SP D |
Kulowetsa kwa AC:: 40kA(8/20μs) |
||
Kutulutsa kwa DC: 20 kA/max = 40KA, 8/20 μ |
|||
Wokonzanso |
Zolowetsa/Zotulutsa |
Kulowetsa 85-300VAC;Kutulutsa 42-58VDC; Mphamvu 3000W, masanjidwe apamwamba 12 |
|
PV Module |
Zolowetsa/Zotulutsa |
Mphamvu yolowera: DC70-150V Kutulutsa: 3000W( 0-62.5A@-42Vdcto-58Vdc): Kuchita bwino ≥ 0.96 (ngati mukufuna) |
|
Kuyang'anira |
Kusintha kwa Chiyankhulo |
Kulowetsa kwa DI: DI * 6, DO linanena bungwe: DO * 6, mawonekedwe a kulumikizana: RS485 * 1, LAN * 1 |
|
Chilengedwe |
kwa Ntchito Kutentha |
0ºC mpaka +45ºC + kuwala kwa dzuwa (thandizo -20ºC ngati kukonzedwa bokosi chisanadze kutentha)) |
|
Kutentha Kosungirako |
-40 ℃ ~ +70 ℃ |
-20 ℃ ~ +60 ℃ |
|
Chogwira Ntchito Chachibale Chinyezi |
5% mpaka 95% (palibe condensation) |
||
Kutalika |
0 mpaka 4000 m (1ºC pa 200 m kutentha kuchokera 2000 mpaka 4000 m) |
||
