Distributed vs. Centralized Battery Monitoring Systems: Pros, Cons, and Ideal Use Cases

Author: Site Editor     Publish Time: 2025-03-17      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

In Battery Management Systems (BMS), distributed and centralized monitoring systems represent two leading technological approaches. As a global leader in battery monitoring solutions, DFUN (Zhuhai) Co., Ltd. delivers innovative hardware and software designs to empower industries with efficient, reliable battery management. This article provides a comprehensive analysis of the pros and cons of distributed and centralized battery monitoring systems, evaluates their optimal applications, and empowers users to select the most suitable solution.


dfun battery monitoring system application


Distributed Battery Monitoring Systems: Flexibility and Scalability


Definition: Distributed systems deploy independent monitoring units (e.g., sensors and local controllers) on each battery or module. Data is collected in real time and transmitted to a central platform via network protocols. DFUN’s PBAT-Gate and PBMS2000 series exemplify this architecture.


Advantages:

  1. High Flexibility
    Modular design allows seamless expansion, ideal for large-scale deployments like data centers or energy storage systems. For instance, the PBMS9000Pro monitors up to 6 battery strings (420 cells), addressing complex demands.

  2. Enhanced Reliability
    Multiple controllers ensure system resilience—if one fails, others continue operating.

  3. Precision & Real-Time Alerts
    Dedicated sensors (e.g., DFUN’s PBAT61 series) track voltage, temperature, and impedance with high accuracy. Instant alerts via mobile apps, SMS, or email reduce maintenance costs.


Challenges:

  1. Higher Initial Costs

    Requires individual sensors and communication modules per battery.

  2. Complex Installation

    Multi-node communication demands robust network infrastructure (supports Modbus, SNMP, IEC61850).


Ideal Applications:

  • Large data centers (e.g., PBMS9000 multi-protocol integration).

  • Multi-site management (e.g., DFCS4200 monitors 100,000+ cells).

  • Critical infrastructure: Metro systems, airports, chemical plants.

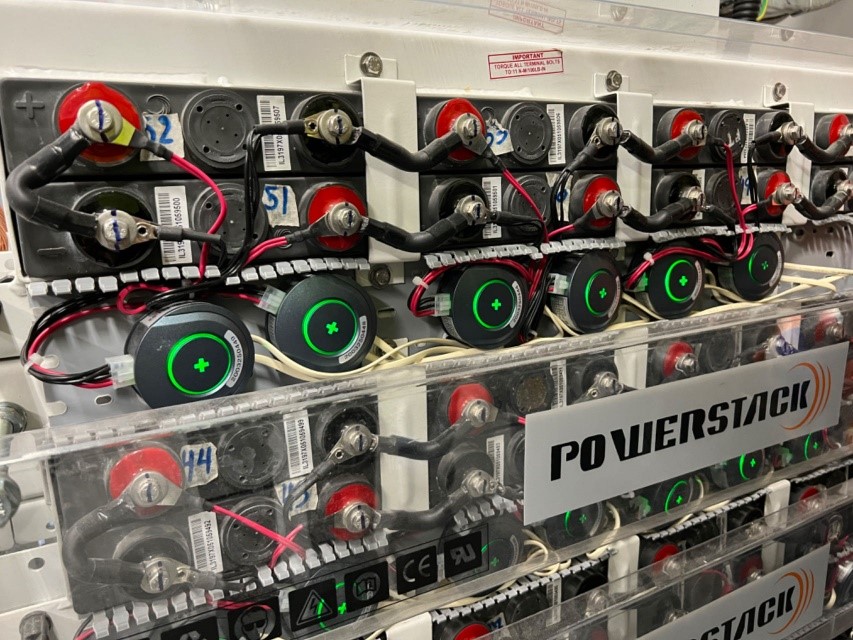

Dfun Distributed Battery Monitoring Systems



Centralized Battery Monitoring Systems: Cost-Effective Simplicity


Definition: Centralized BMS relies on a single controller to manage all battery functions, including data collection (voltage, current, temperature) and processing.


Advantages:

  1. Budget-Friendly
    Fewer sensors and modules reduce costs, perfect for SMEs or small projects like telecom or UPS systems.

  2. Simplified Installation
    Minimal wiring lowers engineering complexity.

  3. Stable Data Transmission

      Wired connections to the central controller ensure fast, reliable communication.


Challenges:

  1. Single Point of Failure

    A central controller malfunction can halt the entire system.

  2. Limited Scalability

    Performance may degrade with added batteries or distance.

Ideal Applications:

  • Small data centers or telecom sites.

  • Centralized power facilities.

  • Rapid-deployment projects.

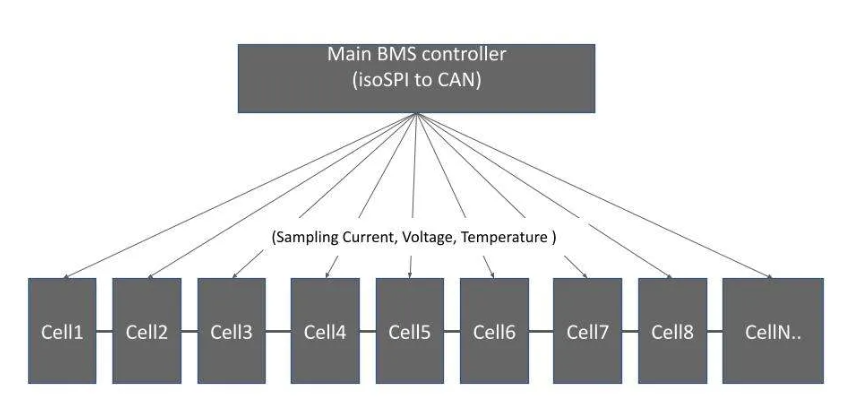

Centralized Battery Monitoring Systems


DFUN’s Innovations in Distributed Solutions

  1. Multi-Protocol Compatibility
    Supports Modbus, SNMP, MQTT, and IEC61850 for seamless integration with SCADA, cloud platforms (e.g., Google, AWS), and global clients.

  2. Robust Design for Harsh Environments

       a. IP65-rated PBMS9000Pro: Ideal for high-dust, high-humidity settings like substations.

       b. Dual Power Redundancy: Ensures uninterrupted operation during outages.

  3. Global Support Network

  4. CE, UL, and ISO9001-certified products serve 80+ countries, including clients like China Mobile, Intel, and Saudi Aramco. Localized technical support and custom development available.

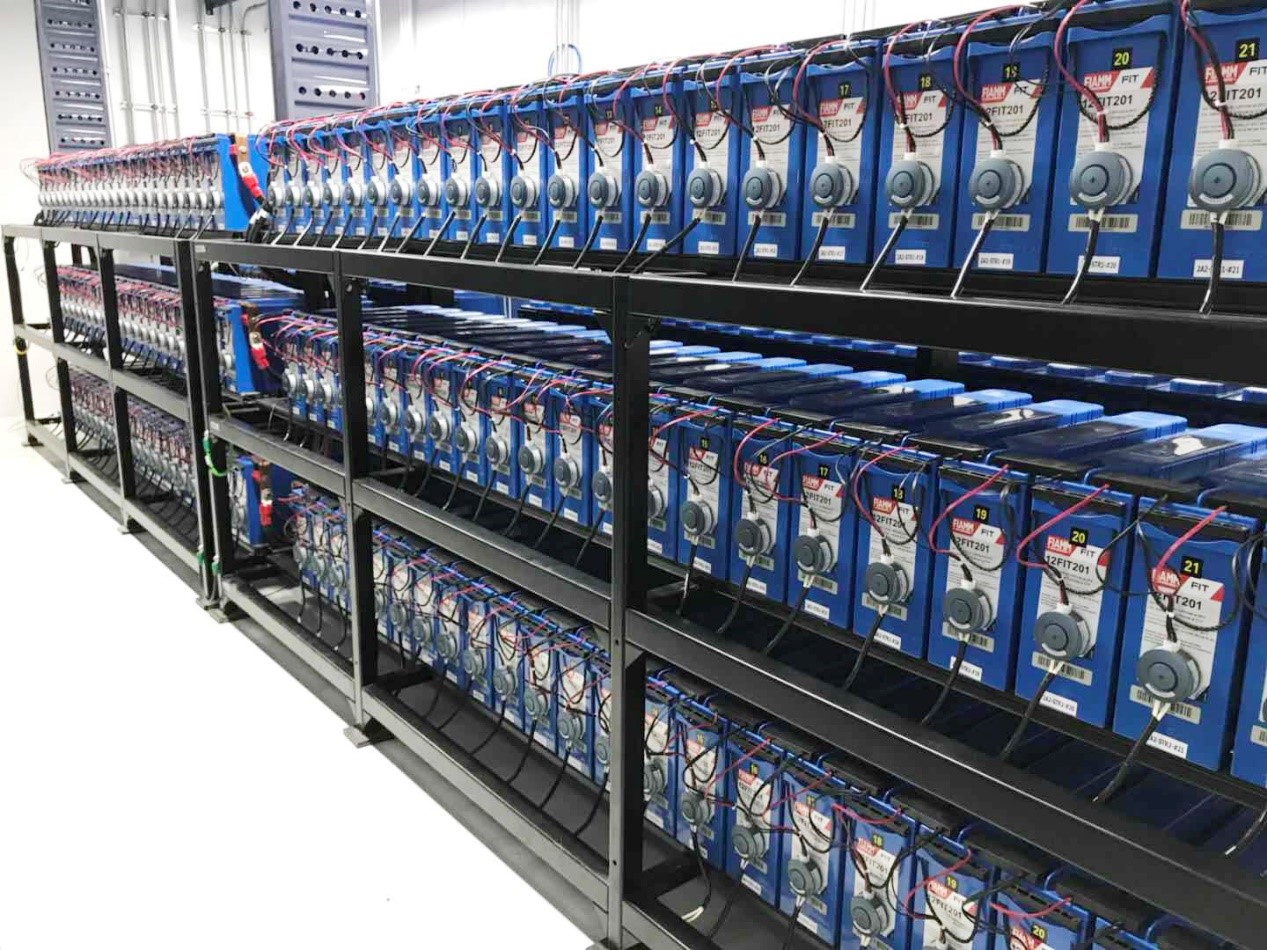

Dfun battery monitoring system


Conclusion: Optimize Your Battery Management

  • Choose Distributed Systems for large-scale, high-reliability projects (e.g., data centers, transportation hubs).

  • Opt for Centralized Systems for cost-sensitive, small-to-medium applications.


Why DFUN?

  • End-to-end Services: From design (e.g., PBAT-BOX) to historical data analysis (5-year storage).

  • Custom Solutions: Tailored sensor types (M5-M20 terminals), protocols, and integrations.
